Elite Series Ergon Bio Collection Tank 6'25ft H
Non-returnable
₹0.00 ₹50,000.00

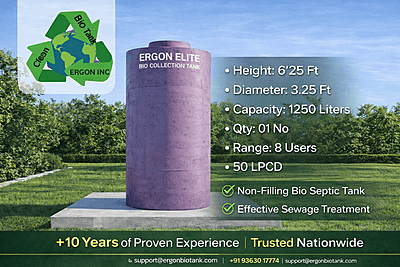

| Parameter | Specification |
|---|---|
| Tank Type | Anaerobic Bio Collection Chamber |
| Size / Capacity | 6'25 ft (H) × 3'25 ft (Día) ≈ 1250 L |
| Operation | Passive (gravity flow, non-electric) |
| Users | 08-10 |
| Material | RCC M25 Cylindrical Bio Tank |
| Design Life | >50 years |
| Maintenance | Ergon Bio Cleanser Dosing yearly 100 x 2 |
Product Details
Ergon Elite Bio Collection Tank – HSN 6810
Eco-Certified Primary Anaerobic Wastewater Pre-Treatment Cylindrical Chamber
1️⃣ Product Overview - Ergon Elite Bio Collection Tank
Product Name:Ergon Elite Bio Collection Tank Capacity 1250 Liters, HSN Code: 6810
Manufacturer: Ergon INC – Ergon Bio Tank
Category: Preliminary wastewater & anaerobic biological pre-treatment chamber
Manufacturer: Ergon INC – Ergon Bio Tank
Category: Preliminary wastewater & anaerobic biological pre-treatment chamber
- ✅ Odourless & Hygienic Treatment,
- ✅ Green Building Friendly,
- ✅ Water Conservation Ready
- ✅ Zero Energy Operation,
- ✅ Eco-Certified & Statutory Compliant,
- ✅ NIL Maintenance.
- ✅ No Chemicals / Additives — 100% biological treatment,
2️⃣ Purpose & Functional Role
a. Wastewater Reception
Acts as the first contact point for all sewage and greywater from domestic, commercial, or institutional plumbing systems.
b. Primary Biological Digestion
Anaerobic bacteria immediately degrade organic solids, reducing BOD, COD, and stabilizing waste.
c. Settling of Solids
Heavy solids settle at the bottom while clarified liquid moves to the next treatment stage, improving overall system efficiency.
Acts as the first contact point for all sewage and greywater from domestic, commercial, or institutional plumbing systems.
b. Primary Biological Digestion
Anaerobic bacteria immediately degrade organic solids, reducing BOD, COD, and stabilizing waste.
c. Settling of Solids
Heavy solids settle at the bottom while clarified liquid moves to the next treatment stage, improving overall system efficiency.

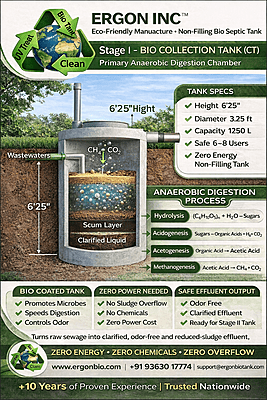

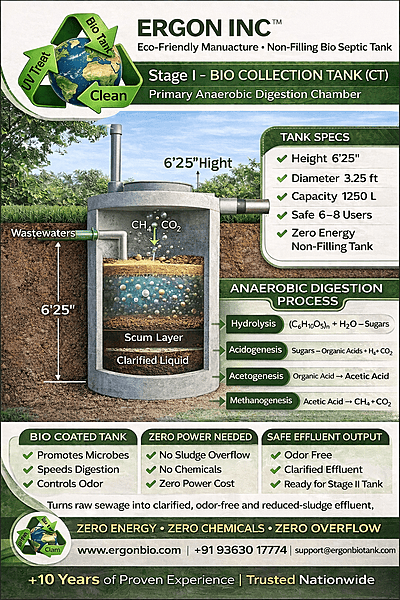

3️⃣ Working Mechanism – Biological & Physical Processes
a. Inflow & Mixing: Engineered inlet prevents backflow and distributes wastewater evenly.
b. Sedimentation – Delay Time Process: Gravity settling forms density zones with heavier organic solids at the base.
c. Anaerobic Digestion:
Anaerobic microorganisms convert organic matter into: CO₂, CH₄, H₂O, and stabilized biomass.
d. Effluent Transfer:
Partially treated effluent flows by gravity to the Ergon Bio Tank for aerobic polishing and final treatment.
b. Sedimentation – Delay Time Process: Gravity settling forms density zones with heavier organic solids at the base.
c. Anaerobic Digestion:
Anaerobic microorganisms convert organic matter into: CO₂, CH₄, H₂O, and stabilized biomass.
d. Effluent Transfer:
Partially treated effluent flows by gravity to the Ergon Bio Tank for aerobic polishing and final treatment.
4️⃣ Design & Technical Specifications
- Tank Type: Primary collection & anaerobic pre-treatment chamber
- Material: M25 Bio Concrete RCC Cylindrical Tank
- Operating Principle: Gravity flow + anaerobic digestion
- Power Requirement: None (passive system)
- Design Life: > 50 years
- Capacity Range: 1250 L – 10,000 L (customizable)
- Maintenance: Minimal periodic inspection
Chamber Zones:
Inlet → Sedimentation → Digestion → Outlet ✅ Scalable: Modular design allows parallel or series configurations for larger facilities.

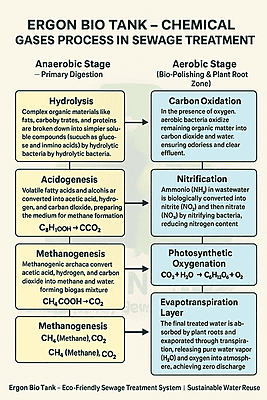

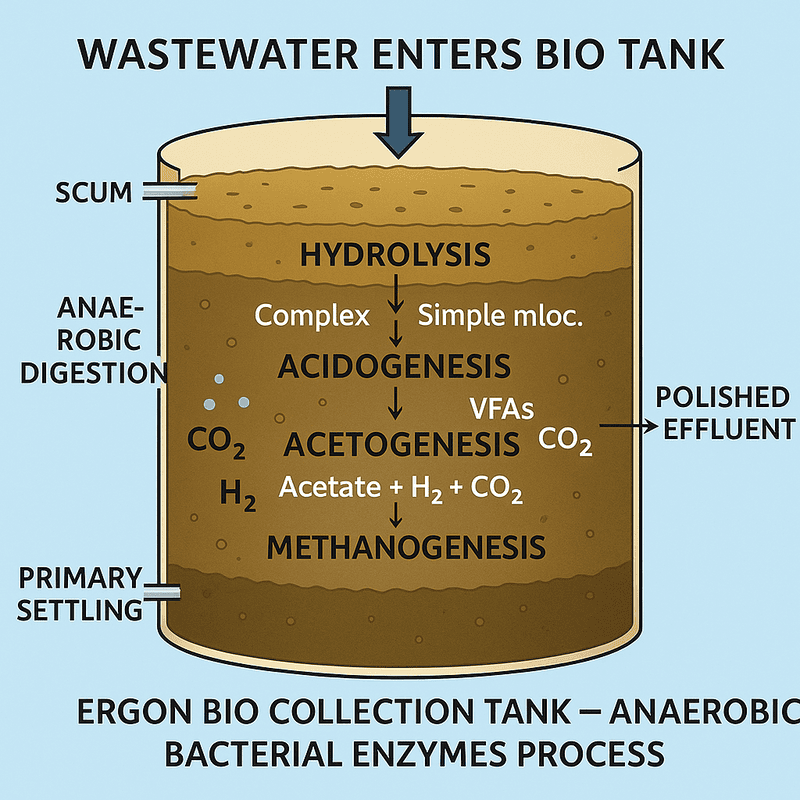

5️⃣ Biological & Physical Reaction Chain
Hydrolysis: Complex macromolecules → smaller organic molecules
Acidogenesis: Anaerobic fermentation → volatile fatty acids
Acetogenesis: Fats & sugars → acetate + H₂
Methanogenesis: Final digestion → CH₄ + CO₂ + water
Outcome: Partial stabilization of wastewater and significant reduction of organic load before secondary treatment.
Acidogenesis: Anaerobic fermentation → volatile fatty acids
Acetogenesis: Fats & sugars → acetate + H₂
Methanogenesis: Final digestion → CH₄ + CO₂ + water
Outcome: Partial stabilization of wastewater and significant reduction of organic load before secondary treatment.
6️⃣ Eco-Friendly & Sustainability Benefits
✅ Eco-Certified Compliance: Conforms to NBC 2016, CPHEEO, NGT & MoHUA guidelines, supporting green building certifications.
💧 Water Conservation: Stabilized effluent enables reuse for gardening, flushing, and on-site water balancing.
🌍 Carbon Neutral Potential: Avoids uncontrolled methane emissions common in conventional septic tanks.
🚫 Zero Chemical Dependency: Relies entirely on natural microbial action, preventing toxic groundwater contamination.
📉 Minimal Energy Footprint: Zero electricity operation and on-site treatment eliminate transport-related emissions.
♻️ Sludge Reduction: High biological consumption minimizes solids, reducing vacuum tanker dependency.
🌍 Carbon Neutral Potential: Avoids uncontrolled methane emissions common in conventional septic tanks.
🚫 Zero Chemical Dependency: Relies entirely on natural microbial action, preventing toxic groundwater contamination.
📉 Minimal Energy Footprint: Zero electricity operation and on-site treatment eliminate transport-related emissions.
♻️ Sludge Reduction: High biological consumption minimizes solids, reducing vacuum tanker dependency.
7️⃣ Conclusion on Elite Bio Tank
The Ergon Elite Bio Collection Tank is a future-ready, eco-certified wastewater solution designed for residential, commercial, institutional, and green building projects. Raw sewage and wastewater are collected in a sealed anaerobic chamber, where oxygen-free biological digestion begins immediately—stabilizing organic waste, eliminating odour, and reducing pollutant load at the source.
